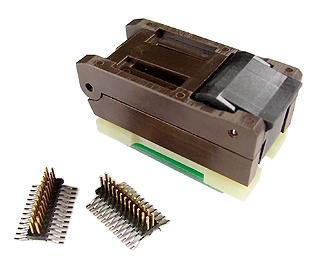

PA-SOD-2808-D420-24/2 SOIC Prototyping Adapter (24-Pin, 0.300″ / 7.62 mm Body Width, 0.050″ / 1.27 mm Pitch) – Includes Two 24-Pin 0.420″ SO-Plugs

Overview

The PA-SOD-2808-D420-24/2 SOIC Prototyping Adapter provides a professional, reusable solution for 24-pin SOIC / SOP devices in the standard 0.300″ (7.62 mm) body width defined by JEDEC MS-013-AA / MS-013-AB.
It features a precision-engineered SOIC test socket with 1:1 signal mapping, designed for connection to a 50×50 mil (0.050″ grid) header system.
This complete kit includes two 24-pin 0.420″ SO-Plugs, allowing fast setup for testing, debugging, or prototype development without soldering.

Technical Specifications

Key Features

• Supports SOIC-24 / SOP-24 (0.300″ / 7.62 mm) per JEDEC MS-013-AA / MS-013-AB.

• Includes two 24-pin 0.420″ SO-Plugs for permanent or semi-permanent connection.

• Provides 1 : 1 signal mapping for accurate circuit emulation and testing.

• Reusable, high-quality socket designed for extended lab use.

• Compatible with standard 50×50 mil header grids.

Applications

• Testing and debugging of SOIC-24 ICs (analog drivers, logic controllers, microcontrollers).

• Rapid prototyping, design validation, and ATE interface.

• Educational and engineering lab environments.

• Repair, rework, or short-run evaluation tasks.

Package Includes

• 1 × SOIC Socket Board (Top Adapter) – 24-Pin, 0.300″ body, 0.050″ pitch.

• 2 × SO-Plugs (24-Pin, 0.420″ pitch).

Compatibility

Supports SOIC / SOP-24 devices per JEDEC MS-013-AA / MS-013-AB (0.300″ / 7.62 mm body width, 1.27 mm pitch).
For wider 0.330″ / 8.38 mm extended packages, see PA-SOD-2806 series.

Fit & Footprint Notes

Ensure target devices follow JEDEC MS-013-AA / MS-013-AB dimensional specifications (0.295–0.305″ body width, 1.27 mm pitch) for proper fit and alignment.

Why Choose This Adapter

• Turnkey test adapter kit with dual SO-Plugs included.

• JEDEC-compliant for consistent compatibility.

• Reusable and accurate solution for lab or production test environments.

Enhance Your Test Bench

The PA-SOD-2808-D420-24/2 SOIC Prototyping Adapter simplifies test and development workflows by providing a robust JEDEC-standard interface for 24-pin SOIC / SOP devices with two 0.420″ SO-Plugs and a 50×50 mil header system.
