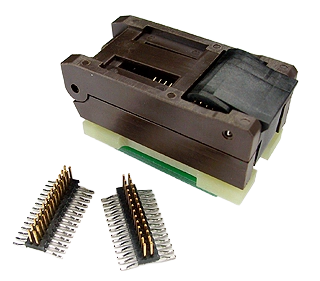

PA-SOD-2808-D420-28/2 SOIC Prototyping Adapter (28-Pin, 0.300″ / 7.62 mm Body Width, 0.050″ / 1.27 mm Pitch) – Includes Two 28-Pin 0.420″ SO-Plugs

Overview

The PA-SOD-2808-D420-28/2 SOIC Prototyping Adapter delivers a professional, reusable interface for 28-pin SOIC / SOP devices in the standard 0.300″ (7.62 mm) body width defined by JEDEC MS-013-AA / MS-013-AB.
It pairs a precision SOIC test socket with a 50×50 mil (0.050″ grid) header interface and includes two 28-pin 0.420″ SO-Plugs for rapid, solder-free prototyping and evaluation.
Ideal for engineering, R&D, and educational environments, it enables easy insertion, removal, and signal testing across a wide range of 28-pin SOIC devices.

Technical Specifications

Key Features

• Supports SOIC-28 / SOP-28 (0.300″ / 7.62 mm) per JEDEC MS-013-AA / MS-013-AB.

• Includes two 28-pin 0.420″ SO-Plugs for convenient circuit interfacing.

• Provides 1 : 1 signal mapping for accurate measurement.

• Reusable test socket – no soldering required.

• Fully compatible with 50×50 mil header systems.

Applications

• Bench testing and validation of SOIC-28 ICs (MCUs, logic arrays, analog devices).

• Prototype development and rapid evaluation cycles.

• Educational / research labs.

• Pre-production and small-run testing.

Package Includes

• 1 × SOIC Socket Board (Top Adapter) – 28-Pin, 0.300″ body, 0.050″ pitch.

• 2 × SO-Plugs (28-Pin, 0.420″ pitch).

Compatibility

Supports SOIC / SOP-28 devices per JEDEC MS-013-AA / MS-013-AB (0.300″ / 7.62 mm body width, 1.27 mm pitch).
For extended-width (0.330″ / 8.38 mm) packages, see PA-SOD-2806 series.

Fit & Footprint Notes

Verify package dimensions (0.295–0.305″ body width, 1.27 mm lead pitch) before use.

Why Choose This Adapter

• JEDEC-compliant 0.300″ SOIC support.

• Includes dual SO-Plugs for immediate integration.

• Designed for long-term reuse and mechanical stability.

Enhance Your Test Bench

Accelerate development and testing with the PA-SOD-2808-D420-28/2 SOIC Prototyping Adapter, a complete solution for 28-pin SOIC evaluation featuring dual SO-Plugs and a 50×50 mil header interface for precision engineering use.
