PA40-44-30-DP-PP – 40-Pin DIP Socket to 44-Pin PLCC Emulator Adapter (Atmel AT90(L)S4434 / 8535)

Overview

PA40-44-30-DP-PP is a PLCC emulator adapter designed for Atmel AT90(L)S4434 and AT90(L)S8535 microcontrollers. As a result, engineers can evaluate 40-pin DIP AVR devices using systems that require a 44-pin PLCC emulator interface.

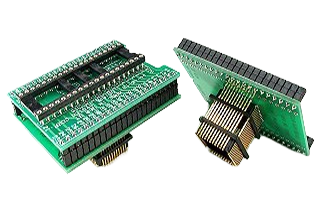

On the top side, the adapter provides a 40-pin DIP socket on 0.100″ (2.54 mm) pitch. Therefore, it accepts DIP-packaged AVR devices used in firmware development and validation workflows.

On the bottom side, the adapter presents a 44-pin PLCC plug. Consequently, it inserts directly into PLCC emulator sockets without additional cabling.

This adapter uses device-specific wiring rather than full 1:1 pin mapping. Instead, it aligns the AVR DIP pinout to the PLCC footprint while implementing defined skips and shorts required by the target devices.

Technical Specifications

• Part Number: PA40-44-30-DP-PP
• Adapter Type: PLCC Emulator Adapter
• Top Interface: DIP-40 socket, 0.100″ (2.54 mm) pitch
• Bottom Interface: PLCC-44 plug
• Wiring Configuration: Atmel AVR-specific wiring with defined skips and shorts (see Adapter Wiring)
• Device Support: Atmel AT90(L)S4434, AT90(L)S8535
• Pitch: DIP side 0.100″ (2.54 mm); PLCC side 0.050″ (1.27 mm)
• JEDEC Reference: PLCC-44, MS-018
• Mount Interface: PLCC-44 plug insertion
• Typical Applications: Microcontroller emulation, firmware development, lab validation
• Compatibility: PLCC-44 emulator sockets supporting Atmel AVR workflows

Adapter Wiring

The following chart shows the connections from the 40-pin DIP device to the adapter’s 44-pin PLCC plug. To improve readability, the wiring is presented in a four-column format.

The left half of the table maps Device pins to corresponding PLCC Plug pins. In parallel, the right half maps PLCC Plug pins back to their associated Device pins.

* GND
** VCC

Skip and short notation: (1, 23, 24, 44), (1–12–24), (11–23–44)

Key Features

• DIP-40 socket supports Atmel AVR DIP devices
• PLCC-44 plug interfaces directly with emulator sockets
• Device-specific wiring for AT90(L)S4434 and AT90(L)S8535
• Defined power and ground shorts improve emulator stability

Applications

• Atmel AVR microcontroller emulation
• Firmware development and debugging
• Device programming and validation
• Engineering and laboratory testing

Package Includes

• One PA40-44-30-DP-PP DIP-40 socket to PLCC-44 emulator adapter

Compatibility Note

This adapter does not use 1:1 wiring. Instead, it applies Atmel AVR-specific pin mapping with defined skips and shorts as listed above. Therefore, verify target and emulator requirements before use.

Why Choose This Adapter

PA40-44-30-DP-PP provides a documented and repeatable solution for AVR emulation in PLCC-based systems. Moreover, it reduces setup complexity during development.

Because the adapter uses controlled routing, it minimizes wiring errors. As a result, engineers can focus on firmware rather than hardware setup.

Streamline Your Workflow

Use this adapter to integrate DIP-based AVR devices into PLCC emulator environments efficiently. Consequently, development and validation cycles move faster.
