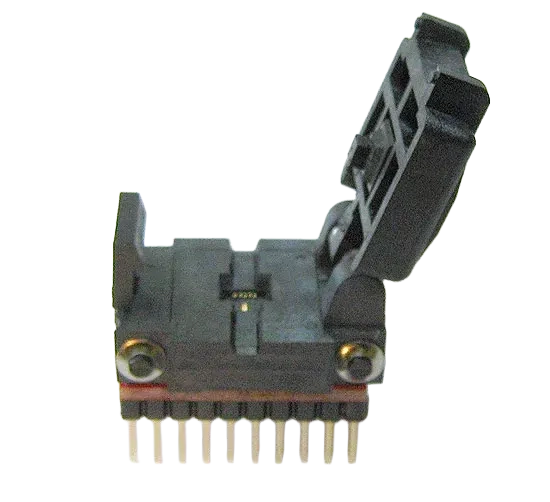

QFN to DIP Programming Adapters
QFN devices to 0.100″ DIP footprints for programming and development.
Technical Overview
QFN to DIP programming adapters provide a directional interface from QFN (device) to a 0.100″ pitch DIP footprint. These adapters are used in programming, firmware development, and engineering evaluation environments.
Each configuration is defined by QFN package geometry, required DIP span, and routing type. Detailed pin mapping and device-specific wiring are disclosed at the individual product level.
Mechanical Configuration
QFN Interface
- Leadless perimeter pad footprint
- Common pitches: 0.40 mm, 0.50 mm, 0.65 mm, 0.80 mm (SKU-defined)
- Body size defined per device
- Exposed thermal pad supported where applicable
- Interface type: solder-pad or socketed QFN (SKU-defined)
DIP Interface
- 0.100″ (2.54 mm) pitch
- 300 mil (0.300″) span
- 600 mil (0.600″) span where required by pin count
- Through-hole DIP pins for programmer or ZIF socket insertion
Routing Configurations
Routing is determined by the QFN device pinout and the target DIP footprint required by the programming system. The routing type is defined at the product level.
- 1:1 Mapping – Direct pad-to-pin alignment where numbering permits
- Device-Specific Mapping – Pin translation to match programmer definitions
- Defined Skips or Shorts – Implemented where required by device architecture or programming interface
QFN → DIP Adapter Catalog
| Order | P/N | Top Pins (PLCC) | Bottom Pins (DIP) | Socket Type | Short Technical Description |
|---|---|---|---|---|---|
| 1 | PA8DFN50-D3-ZL-P | 8 | 8 | Clamshell | DFN Programming adapter for 8-pin DFN, 6.0 X 5.0 mm body, 1.27mm lead-pitch, wired 1-1. 300 mil span DIP plug. |
| 2 | PA8DFN50-D3-ZL-S | 8 | 8 | Clamshell | DFN Programming adapter for 8-pin DFN, 6.0 X 5.0 mm body, 1.27mm lead-pitch, wired 1-1. 300 mil span DIP plug. |
| 3 | PA16QFN20-D6-ZL-P | 16 | 16 | Clamshell | QFN Programming adapter for 16-pin QFN, 6.9 X 6.9 mm body, 0.50mm lead-pitch, wired 1-1. 600 mil span DIP plug. |
| 4 | PA16QFN26-14D6-ZL-P-PIC1554 | 16 | 16 | Clamshell | QFN Programming adapter for 16-pin QFN, 4.0 X 4.0 mm body, 0.65mm lead-pitch, wired 1-1. 600 mil span DIP plug. |
| 5 | PA20QFN20L-D6-ZL-P | 20 | 20 | Clamshell | QFN Programming adapter for 20-pin QFN, 4.0 X 4.0 mm body, 0.50mm lead-pitch, wired 1-1. 600 mil span DIP plug. |
| 6 | PA28QFN26-D6-ZL-PIC | 28 | 28 | Clamshell | QFN Programming adapter for 28-pin QFN, 6.0 X 6.0 mm body, 0.65mm lead-pitch, wired 1-1. 600 mil span DIP plug. |
| 7 | PA32QFN20-28D6-ZL-ATtiny | 32 | 32 | Open Top | QFN Programming adapter for 32-pin QFN, 5.0 X 5.0 mm body, 0.50mm lead-pitch, wired 1-1. 600 mil span DIP plug. |
| 8 | PA48QFN20-D6-ZO-P | 48 | 48 | Open Top | QFN Programming adapter for 48-pin QFN, 8.0 X 8.0 mm body, 0.50mm lead-pitch, wired 1-1. 600 mil span DIP plug. |
| 9 | PA56QFN16-D9-ZL-S-P | 56 | 56 | Open Top | QFN Programming adapter for 56-pin QFN, 7.0 X 7.0 mm body, 0.40mm lead-pitch, wired 1-1. 600 mil span DIP plug. |
Not Finding What You Need?
For configuration review and quoting, provide the following:
- QFN package drawing (pin count, pitch, body size, and thermal pad details)
- Required DIP span (0.300″ or 0.600″)
- Routing requirement (1:1 or device-specific)
- Programming system or socket footprint confirmation
