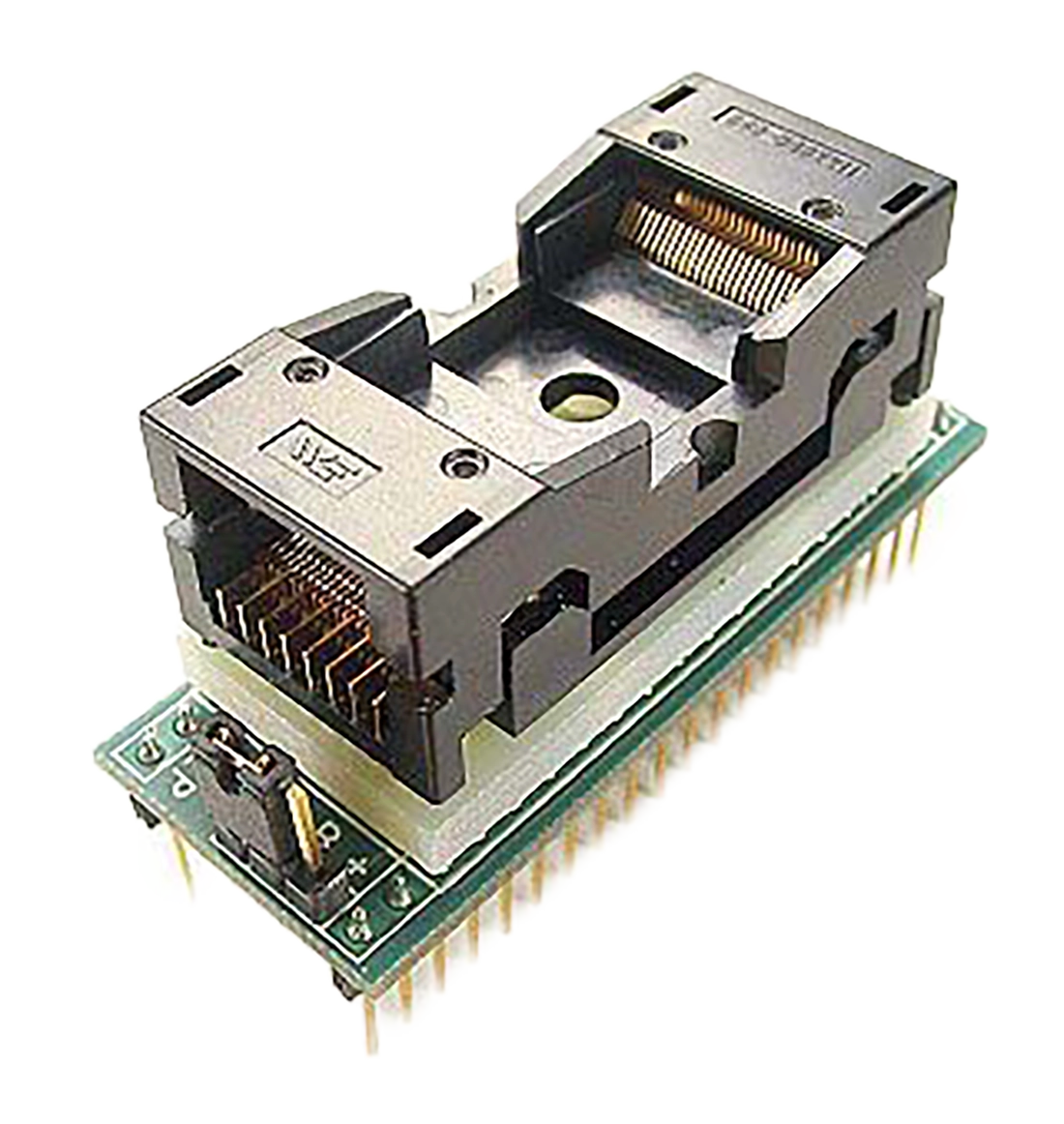

TSOP to DIP Programming Adapters
TSOP socket interface to standard DIP footprint
Technical Overview
TSOP to DIP programming adapters provide a temporary electrical interface between TSOP surface-mount packages and standard 0.100″ pitch DIP programmer sockets.
The top interface consists of a TSOP socket matched to the specified body width and lead pitch. The bottom interface presents a DIP plug footprint compatible with common DIP programming systems.
Available configurations support multiple TSOP pin counts and standard JEDEC lead pitches. Routing may be 1:1 or device-specific depending on the adapter part number.
Electrical mapping, supported package dimensions, and mechanical tolerances are defined on each individual product page.
Mechanical Configuration
Top Interface: TSOP socket matched to the specified body width, lead pitch, and pin count. Common configurations include narrow and wide body TSOP packages with standard JEDEC lead spacing.
Socket types may include ZIF or low insertion force designs depending on part number. Contact systems are selected to maintain alignment and repeatable electrical engagement.
Bottom Interface: 0.100″ pitch DIP plug footprint designed to insert directly into standard DIP programmer sockets.
Construction utilizes rigid FR-4 substrate with plated-through vias and defined pad geometry to maintain mechanical stability and electrical continuity.
Routing Configurations
TSOP to DIP programming adapters are available with defined routing schemes based on device requirements.
- 1:1 pin mapping between TSOP leads and DIP pins
- Device-specific remapping to match programmer pin assignments
- Defined skips, tied pins, or power/ground consolidation where required
Routing configuration is identified at the product level. Refer to the individual part page for exact signal mapping and electrical definition.
TSOP → DIP Programming Adapter Catalog
Select a TSOP to DIP configuration based on pin count, body width, lead pitch, and required DIP footprint. Each part number links to detailed mechanical specifications and routing definition.
| Order | P/N | Top Pins | Bottom Pins | Socket Type | Short Technical Description |
|---|---|---|---|---|---|
| 1 | PA28TSOP3 | 28 | 28 | Open Top | TSOP Programming adapter for 11.8mm body, 13.4mm overall TSOP package. Adapter wired 1-1. |
| 2 | PA32TS14-OT | 32 | 32 | Open Top | TSOP Programming adapter for 12.4mm body, 14.0mm overall TSOP package. Wired 1-1 by signal. |
| 3 | PA32TS20-OT | 32 | 32 | Open Top | TSOP Programming adapter for 18.4mm body, 20.0mm overall TSOP package. Wired 1-1 by signal. |
| 4 | PA40TS14-OT | 40 | 40 | Open Top | TSOP Programming adapter for 12.4mm body, 14.0mm overall TSOP package. Wired 1-1 by signal. |
| 5 | PA40TS20-1OT | 40 | 40 | Open Top | TSOP Programming adapter for 18.4mm body, 20.0mm overall TSOP package. Wired 1-1 by pin number. |
| 6 | PA40TS20-OT | 40 | 40 | Open Top | TSOP Programming adapter for 18.4mm body, 20.0mm overall TSOP package. Wired 1-1 by signal. |
| 7 | PA48TS20-1OT | 48 | 48 | Open Top | TSOP Programming adapter for 18.4mm body, 20.0mm overall TSOP package. Wired 1-1 by pin number. |
| 8 | PA48TS20-OT | 48 | 48 | Open Top | TSOP Programming adapter for 18.4mm body, 20.0mm overall TSOP package. Wired 1-1 by signal. |
| 9 | PA28-24-1TS | 32 | 24 | Open Top | TSOP Programming adapter for Microchip 28C16A TSOP in its 24 pin DIP footprint. |
| 10 | PA29F-S4-TS | 48 | 32 | Open Top | TSOP Programming adapter for AMD 29F200 TSOP in 32 PIN AMD29F0x0 footprint, also Dataman S4 pgmr. |
| 11 | PA32-28-2TS | 32 | 28 | Open Top | TSOP Programming adapter for 27C64,’128,’ 256,’ 512, ’28C17,’ 64 pin socket depopulated in middle. |
| 12 | PA32-28-3TS | 32 | 28 | Open Top | TSOP Programming adapter for AMD 27C256. |
| 13 | PA40-32-1TS20 | 40 | 32 | Open Top | TSOP Programming adapter for 40 PIN TSOP devices in 32 pin DIP equivalent. |
| 14 | PA40-32-2TS20 | 40 | 32 | Open Top | TSOP Programming adapter for SST 28SF040, 28LF040, 28SF020, 28VF040. |
| 15 | PA40TS-32-AS002 | 40 | 32 | Open Top | TSOP Programming adapter for Alliance AS29F002 TSOP in AMD 29F002 footprint. |
| 16 | PA40TS-SG1 | 40 | 40 | Open Top | TSOP Programming adapter for Atmel AT49F1025 TSOP in System General footprint. Made to order. |
| 17 | PA48-40-1TS | 48 | 40 | Open Top | TSOP Programming adapter for Intel Flash devices, programmer specific, see data sheet. |
| 18 | PA48-40-2TS | 48 | 40 | Open Top | TSOP Programming adapter for AMD & Intel Flash devices, programmer specific, see data sheet. |
| 19 | PA48TS29F | 48 | 44 | Open Top | TSOP Programming adapter for AMD 29F200,400, programs in SOIC footprint only. |
| 20 | PA48TS29F-800 | 48 | 44 | Open Top | TSOP Programming adapter Converts pinout of AMD 29F800 48 TSOP to 44 pin SOP pinout. |
Not Finding What You Need?
If the required TSOP configuration is not listed, provide the device part number, package body width, lead pitch, and required DIP footprint.
Custom routing, alternate pin mapping, and mechanical variations can be defined based on programmer requirements and package constraints.
