QSOP to DIP Adapters
Convert QSOP packages to DIP interfaces for programming, testing, prototyping, and production applications.
Overview
QSOP to DIP adapters convert QSOP packages to standard DIP interfaces for programming, testing, prototyping, and production applications. Adapt-Plus offers reusable socket adapters for device programming and validation, along with solder-down SMT adapters for permanent PCB integration and production use.
Selecting the correct QSOP to DIP adapter requires matching the QSOP package pin count, body width, lead pitch, DIP footprint, socket type, and required pin mapping. Browse the tables below to compare available socket and SMT adapter configurations and navigate directly to the appropriate product page.
Socket & Programming QSOP to DIP Adapters
Reusable QSOP to DIP socket adapters are ideal for device programming, engineering validation, functional testing, and prototyping where ICs must be inserted and removed repeatedly. These adapters provide a convenient solution for development environments, device evaluation, and production programming without permanently soldering the QSOP device.
| Order | Part Number | Supported Device Jedec STD. | QSOP Pitch (mm) | qsop Body (mm) | QSOP Tip to Tip (mm) | Top Pins (QSOP) | Bottom Pins (DIP) | Socket Type | DIP Span (inches) | Wiring | Supported Devices |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | PA16QS-OT-3 | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 16 | 16 | Open Top | 0.300" | 1:1 | Generic — JEDEC MO-150 QSOP-16, 1:1 pin mapping |
| 2 | PA16QS-OT-6 | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 16 | 16 | Open Top | 0.600" | 1:1 | Generic — JEDEC MO-150 QSOP-16, 1:1 pin mapping |
| 3 | PA20QS-OT | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 20 | 20 | Open Top | 0.600" | 1:1 | Generic — JEDEC MO-150 QSOP-20, 1:1 pin mapping |
| 4 | PA24QS-OT | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 24 | 24 | Open Top | 0.600" | 1:1 | Generic — JEDEC MO-150 QSOP-24, 1:1 pin mapping |
| 5 | PA28QS-OT-3 | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 28 | 28 | Open Top | 0.300" | 1:1 | Generic — JEDEC MO-150 QSOP-28, 1:1 pin mapping |
| 6 | PA28QS-OT-6 | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 28 | 28 | Open Top | 0.600" | 1:1 | Generic — JEDEC MO-150 QSOP-28, 1:1 pin mapping |
| 7 | PA48QS-1387-6 | MO-150 | 0.635 mm | 7.5 mm | 10.3 mm | 48 | 48 | Clamshell | 0.600" | 1:1 | Generic — JEDEC MO-150 QSOP-48, 1:1 pin mapping |
SMT & Production QSOP to DIP Adapters

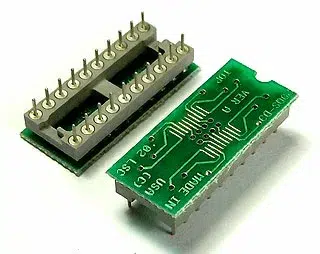

SMT QSOP to DIP adapters are designed for permanent solder-down installation in production assemblies, embedded systems, prototyping, and engineering validation. These adapters provide a reliable method of integrating QSOP devices into standard DIP footprints where repeated device removal is not required.
| Order | Part Number | Supported Device Jedec STD. | QSOP Pitch (mm) | qsop Body (mm) | QSOP Tip to Tip (mm) | Top Pins (QSOP) | Bottom Pins (DIP) | DIP Span (inches) | Wiring | Supported Devices |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | PA-QSD3SM18-16 | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 16 | 16 | 0.300" | 1:1 | Generic — JEDEC MO-150 QSOP-16, 1:1 pin mapping |
| 3 | PA-QSD3SM18-20 | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 20 | 20 | 0.300" | 1:1 | Generic — JEDEC MO-150 QSOP-20, 1:1 pin mapping |
| 4 | PA-QSD3SM18-24 | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 24 | 24 | 0.300" | 1:1 | Generic — JEDEC MO-150 QSOP-24, 1:1 pin mapping |
| 5 | PA-QSD6SM18-28 | MO-150 | 0.635 mm | 3.9 mm | 6.0 mm | 28 | 28 | 0.600" | 1:1 | Generic — JEDEC MO-150 QSOP-28, 1:1 pin mapping |
Need a Custom QSOP to DIP Adapter?
Adapt-Plus designs custom QSOP to DIP adapters for applications requiring non-standard pin counts, specialized footprints, custom pin mappings, or unique mechanical and electrical interface requirements. We work with engineering teams to develop adapter solutions for devices that are not supported by standard catalog products.
Custom adapters are available for device programming, engineering validation, functional testing, prototyping, production programming, and other application-specific requirements.
