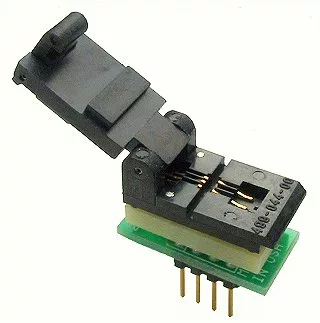

SOT23 to DIP Programming Adapter — Clamshell Socket

Overview

PA05-08-1SOT3 is a device-specific programming adapter that converts a 5-pin SOT23 interface into an 8-pin DIP footprint, enabling reliable programming of Microchip 24xx series EEPROM devices with device-specific signal routing.

Interface

• Top interface: SOT23, 5-pin, 0.95 mm pitch
• Bottom interface: DIP, 8-pin
• Device body size: 1.63 × 1.63 mm
• Tip-to-tip dimensions: 2.8 mm

Key Features

• Clamshell socket for secure device insertion
• Device-specific wiring configuration (non-1:1)
• Pin 4 omitted to match device pinout requirements

Compatibility

Microchip 24AA00, 24C00, 24LC00

Technical Specifications

• Pitch: 0.95 mm
• Device body size (X × Y): 1.63 × 1.63 mm
• Tip-to-tip size: 2.8 mm
• Top interface pin count: 5
• Bottom interface pin count: 8
• Socket type: Clamshell
• Wiring type: Device-specific mapping (non-1:1)
• Supported devices: Microchip 24AA00, 24C00, 24LC00
