MSOP-10 to DIP-10 Programming Adapter — Open Top Socket, 0.600″ DIP Span
SKU: PA10MSO-OT-6
Overview

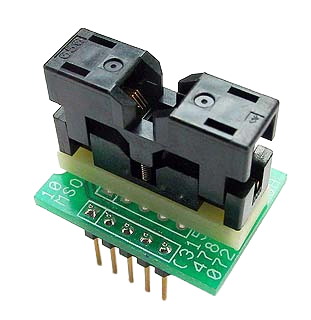

The PA10MSO-OT-6 is a package-specific programming adapter for prototyping and production test applications. It accepts MSOP-10 packages (JEDEC MO-187-BA) and presents a DIP-10 footprint for use with standard DIP-based programming sockets and ZIF programmer fixtures. An open top socket allows fast device insertion and removal without tools.
1:1 pin mapping — Pin 1 of the MSOP-10 corresponds directly to Pin 1 of the DIP-10 footprint.
Interface
| Top Interface | MSOP-10 — 10 pins, 0.5 mm pitch |
|---|---|
| Bottom Interface | DIP-10 — 10 pins, 0.600″ span |
| Wiring | 1:1 |
Key Features
- Open top socket — tool-free device placement and removal
- 0.600″ DIP span compatible with standard DIP socket programmers
- 1:1 signal routing — no level shifting or signal conditioning
- Compatible with standard DIP ZIF programmer sockets
Compatible Devices
Verified compatible with: LTC6102, ADP3303, MAX3221, LTC6900, ADG711, MAX6816, AD8616, LT1999, INA193, AD8656, MAX4239, LTC1440
Any MSOP-10 device conforming to JEDEC MO-187-BA (body 3.0 mm × 3.0 mm, 0.5 mm pitch, 4.9 mm tip-to-tip) will fit.
Technical Specifications
| Part Number | PA10MSO-OT-6 |
|---|---|
| JEDEC Standard | MSOP-10 (MO-187-BA) |
| Top Interface | MSOP-10 — 10 pins |
| Bottom Interface | DIP-10 — 10 pins |
| Lead Pitch | 0.5 mm |
| Device Body | 3.0 mm × 3.0 mm |
| Tip-to-Tip | 4.9 mm |
| DIP Span | 0.600″ |
| Socket Type | Open Top |
| Wiring | 1:1 |
How to Order
In-stock item — add to cart or contact us for volume pricing.
$80.00
