PLCC-28 to DIP-28 Programming Adapter — Clamshell Socket
SKU: PA28-28-21PZ3
Overview

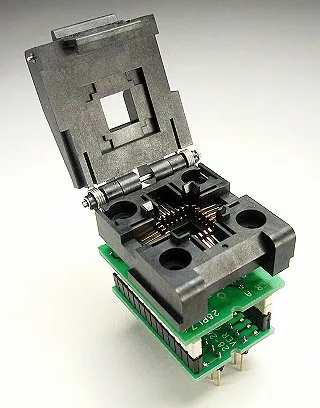

PA28-28-21PZ3 is a device-specific interface conversion adapter designed for device-specific applications with a clamshell socket for repeated insertion cycles.
Interface
Top interface: PLCC-28
Bottom interface: DIP-28, .300 inch span
Direction: PLCC to DIP
Key Features
- Clamshell socket supports high cycle usage in programming and test environments.
- .300 inch DIP span for narrow socket compatibility.
- Device-specific wiring (refer to datasheet).
Compatibility
Compatible with Altera and EPS448/BP MICROSYS devices. Verify exact compatibility.
Technical Specifications
| P/N | PA28-28-21PZ3 |
|---|---|
| Supported Device Jedec STD. | MO-047-AB |
| PLCC Pitch (in) | 0.05 |
| PLCC Body (in) | .453x.453 |
| PLCC Shoulder (in) | .490x.490 |
| Top Pins (PLCC) | 28 |
| Bottom Pins (DIP) | 28 |
| Socket Type | Clamshell |
| Dip Span (inches) | .300″ |
| Wiring | Device Specific (See Datasheet) |
| Supported Devices | Altera, EPS448/BP MICROSYS. |
