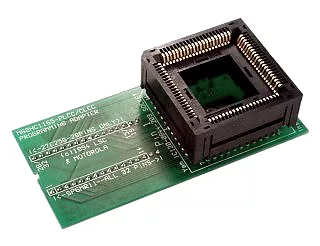

PLCC-84 to DIP-28 programming adapter with Auto Eject socket for Motorola MC68HC711G5 devices.
SKU: PA711G5-PE
Overview
The PA711G5-PE is a device-specific programming adapter engineered for Motorola MC68HC711G5 microcontrollers. It features an Auto Eject socket to improve workflow efficiency and ensure consistent programming performance.
Interface
Top Interface → Bottom Interface: PLCC-84 → DIP-28
Key Features
- Auto Eject socket enables fast and efficient device handling
- Designed specifically for Motorola MC68HC711G5 programming applications
- Ensures stable electrical connections during programming cycles
- Supports repeatable use in development and production environments
Compatibility
Supports Motorola MC68HC711G5 devices. Compatible with BP Microsystems programmers. All device compatibility and wiring configurations are validated against manufacturer datasheets to ensure correct operation.
Technical Specifications
| Supported Device Jedec STD. | MO-047-AF |
| PLCC Pitch (in) | 0.05 |
| PLCC Body (in) | 1.154X1.154 |
| PLCC Shoulder (in) | 1.190×1.190 |
| Top Pins (PLCC) | 84 |
| Bottom Pins (DIP) | 28 |
| Socket Type | Auto Eject |
| Dip Span (inches) | .600″ |
| Wiring: | Device Specific (See Datasheet) |
| Supported Devices | Motorola MC68HC711G5 |
$136.50
